planetary concrete grinder S9-X-550
MERROCK Profile.pdf
Fields of applications:
* Grinding concrete/epoxy floor/ solidified floor/ terrazzo floor /granite floor /natural marble floor /diamond abrasion
resistant floor /self leveling cement,etc ,places requiring surface treatment
* Removal of paint, epoxy, glue and other coatings from concrete
* Preparation of concrete for installation of new flooring/coating
* Elimination of irregularities in concrete
* Repair of damaged concrete
* Sealing preparation
* Renovation works
Quick Specifications:
| Name | Concrete Grinder | Application | Marble, granite, terrazzo, concrete floor |
| Type | S9-X-220B | Function | Leveling, polishing, grinding, renovating |
Description:
- Super Portable
- With small size, more convenient to move
- planetary system, best for stone grinding and polishing
- With Three 3 heads, each of them fix 3 pieces polishing pads, each time need fix 9 pieces polishing pads.
- with adjustable Handle, so easy to handle.
- With branded inverter that could adjust the speed from 0 to 1500 rmp.
Application:
Nature Stone/Concrete/Terrazzo leveling, floor polishing and grinding, also apply to strip the old coat of epoxy etc...
Specification:
| Type | S9-X-220B |
| Voltage | 220V-240V |
| Motor | 5.5KW |
| Speed | 0-1500 rpm |
| Body weight | 200KGS |
| Working width | 550mm |
| Water tank | 30L |
| Grinding plate | 9 heads |

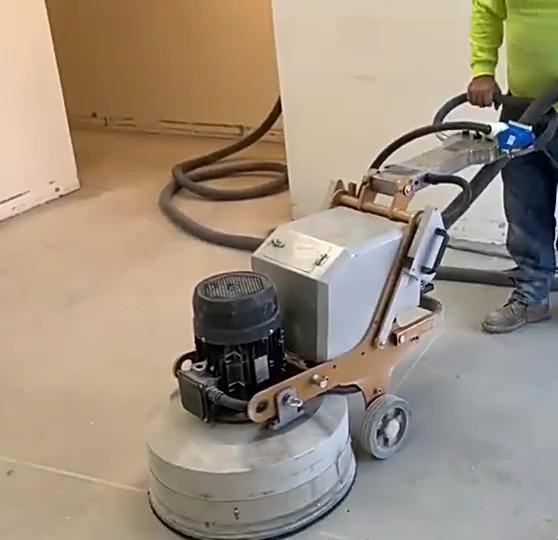

Detail picture:
Resin pads:
How Do Planetary Grinders operate?
A planetary grinder receives its title due to its similarity to how planets work. There is a giant important disc that acts as a central factor round which quite a few small discs rotate at special speeds from the giant disc. The small discs all grind or polish the floor concurrently whilst the giant disc doesn’t come in contact with the floor. Think of it like the giant disc is the solar and the small discs are the planets orbiting the solar whilst additionally turning on their very own axis.
